Sample Mechanism that performs a periodic 'get'. More...

#include <SampleMechanismGetEA3.h>

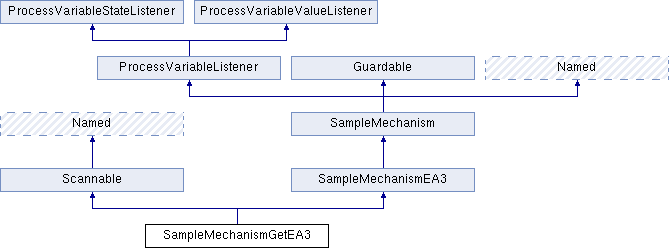

Inheritance diagram for SampleMechanismGetEA3:

Public Member Functions
	SampleMechanismGetEA3 (EngineConfig &config, ProcessVariableContext &ctx, ScanList &scan_list, const char *name, double period)
	Constructor.

virtual	~SampleMechanismGetEA3 ()
	Destructor.

void	scan (const epicsTime &now)
	Invoked whenever a scan is due. More...

virtual std::string	getInfo (Guard &guard)

virtual void	start (Guard &guard)
	Start the sample mechanism. More...

virtual void	stop (Guard &guard)
	Stop sampling. More...

virtual void	addToFUX (Guard &guard, FUX::Element *doc)
	Append this sample mechanism to a FUX document. More...

Public Member Functions inherited from SampleMechanismEA3
	SampleMechanismEA3 (const EngineConfig &config, ProcessVariableContext &ctx, const char name, double period, ProcessVariableListener disable_filt_listener)
	Constructor.

virtual	~SampleMechanismEA3 ()
	Destructor.

virtual unsigned long	write (Guard &guard, Index &index)
	Write current buffer to index. More...

virtual void	pvConnected (ProcessVariable &pv, const epicsTime &when)
	ProcessVariableStateListener. More...

virtual void	pvValue (ProcessVariable &pv, const RawValue::Data *data)
	ProcessVariableValueListener. More...

size_t	getSampleCount (Guard &guard) const

Public Member Functions inherited from SampleMechanism
	SampleMechanism (const EngineConfig &config, ProcessVariableContext &ctx, const char name, double period, ProcessVariableListener disable_filt_listener)
	Construct mechanism for given period. More...

void	pvDisconnected (ProcessVariable &pv, const epicsTime &when)
	ProcessVariableStateListener. More...

virtual OrderedMutex &	getMutex ()

virtual const std::string &	getName () const
	Gets the ProcessVariable name. More...

bool	isRunning (Guard &guard)

ProcessVariable::State	getPVState ()

void	disable (const epicsTime &when)
	Temporarily disable sampling. More...

void	enable (const epicsTime &when)
	Re-enable sampling. More...

void	addStateListener (ProcessVariableStateListener *listener)
	Add a listener to the underlying PV. More...

void	removeStateListener (ProcessVariableStateListener *listener)
	Remove a listener from the underlying PV. More...

void	addValueListener (ProcessVariableValueListener *listener)
	Add a listener to the underlying PV. More...

void	removeValueListener (ProcessVariableValueListener *listener)
	Remove a listener from the underlying PV. More...

Public Member Functions inherited from ProcessVariableStateListener
virtual	~ProcessVariableStateListener ()
	Constructor.

Detailed Description

Sample Mechanism that performs a periodic 'get'.

New samples are stored. Samples that don't change are stored via a 'repeat count', up to a maximum repeat count specified in the EngineConfig.

The data flows as follows:

ProcessVariable (scanned at requested period)
DisableFilter
RepeatFilter
TimeFilter
SampleMechanismGet
base SampleMechanism

Member Function Documentation

virtual void SampleMechanismGetEA3::addToFUX	(	Guard &	guard,
		FUX::Element *	doc
	)

virtual

Append this sample mechanism to a FUX document.

Reimplemented from SampleMechanism.

virtual std::string SampleMechanismGetEA3::getInfo ( Guard & guard )

virtual

Returns: Returns a description of mechanism and current state.

Reimplemented from SampleMechanism.

void SampleMechanismGetEA3::scan ( const epicsTime & now )

virtual

Invoked whenever a scan is due.

The passed 'now' is the deadline time that was used to decide if this item is due 'now', so it should be very close to the current time, and might be cheaper to use than asking for the exact current time.

Implements Scannable.

virtual void SampleMechanismGetEA3::start ( Guard & guard )

virtual

Start the sample mechanism.

Base implementation starts the PV.

Reimplemented from SampleMechanism.

virtual void SampleMechanismGetEA3::stop ( Guard & guard )

virtual

Stop sampling.

See Also: start()

Base implementation stops the PV and adds a 'STOPPED (OFF)' event.

Reimplemented from SampleMechanism.

The documentation for this class was generated from the following file:

/home/malitsky/projects/epics-archiver/sourceforge/trunk/ea4-cpp/include/classic/engine/SampleMechanismGetEA3.h
