Monitored Sample Mechanism. More...

#include <SampleMechanismMonitoredEA3.h>

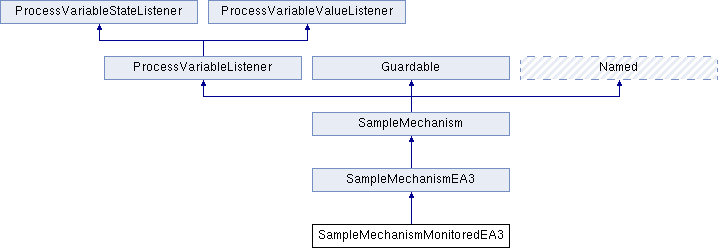

Inheritance diagram for SampleMechanismMonitoredEA3:

Public Member Functions
	SampleMechanismMonitoredEA3 (EngineConfig &config, ProcessVariableContext &ctx, const char *name, double period_estimate)
	Constructor.

virtual	~SampleMechanismMonitoredEA3 ()
	Destructor.

virtual std::string	getInfo (Guard &guard)

virtual void	addToFUX (Guard &guard, FUX::Element *doc)
	Append this sample mechanism to a FUX document. More...

virtual void	pvConnected (ProcessVariable &pv, const epicsTime &when)
	ProcessVariableStateListener. More...

Public Member Functions inherited from SampleMechanismEA3
	SampleMechanismEA3 (const EngineConfig &config, ProcessVariableContext &ctx, const char name, double period, ProcessVariableListener disable_filt_listener)
	Constructor.

virtual	~SampleMechanismEA3 ()
	Destructor.

virtual unsigned long	write (Guard &guard, Index &index)
	Write current buffer to index. More...

virtual void	pvValue (ProcessVariable &pv, const RawValue::Data *data)
	ProcessVariableValueListener. More...

size_t	getSampleCount (Guard &guard) const

Public Member Functions inherited from SampleMechanism
	SampleMechanism (const EngineConfig &config, ProcessVariableContext &ctx, const char name, double period, ProcessVariableListener disable_filt_listener)
	Construct mechanism for given period. More...

virtual void	start (Guard &guard)
	Start the sample mechanism. More...

virtual void	stop (Guard &guard)
	Stop sampling. More...

void	pvDisconnected (ProcessVariable &pv, const epicsTime &when)
	ProcessVariableStateListener. More...

virtual OrderedMutex &	getMutex ()

virtual const std::string &	getName () const
	Gets the ProcessVariable name. More...

bool	isRunning (Guard &guard)

ProcessVariable::State	getPVState ()

void	disable (const epicsTime &when)
	Temporarily disable sampling. More...

void	enable (const epicsTime &when)
	Re-enable sampling. More...

void	addStateListener (ProcessVariableStateListener *listener)
	Add a listener to the underlying PV. More...

void	removeStateListener (ProcessVariableStateListener *listener)
	Remove a listener from the underlying PV. More...

void	addValueListener (ProcessVariableValueListener *listener)
	Add a listener to the underlying PV. More...

void	removeValueListener (ProcessVariableValueListener *listener)
	Remove a listener from the underlying PV. More...

Public Member Functions inherited from ProcessVariableStateListener
virtual	~ProcessVariableStateListener ()
	Constructor.

Detailed Description

Monitored Sample Mechanism.

Every received sample is stored.

Requires a period estimate in order to allocate a buffer for the values until they are written to storage.

The data flows as follows:

ProcessVariable (subscribed)
DisableFilter
TimeFilter
SampleMechanismMonitored
base SampleMechanism

Member Function Documentation

virtual void SampleMechanismMonitoredEA3::addToFUX	(	Guard &	guard,
		FUX::Element *	doc
	)

virtual

Append this sample mechanism to a FUX document.

Reimplemented from SampleMechanism.

virtual std::string SampleMechanismMonitoredEA3::getInfo ( Guard & guard )

virtual

Returns: Returns a description of mechanism and current state.

Reimplemented from SampleMechanism.

virtual void SampleMechanismMonitoredEA3::pvConnected	(	ProcessVariable &	pv,
		const epicsTime &	when
	)

virtual

ProcessVariableStateListener.

Base implementation allocates circular buffer

Reimplemented from SampleMechanismEA3.

The documentation for this class was generated from the following file:

/home/malitsky/projects/epics-archiver/sourceforge/trunk/ea4-cpp/include/classic/engine/SampleMechanismMonitoredEA3.h
